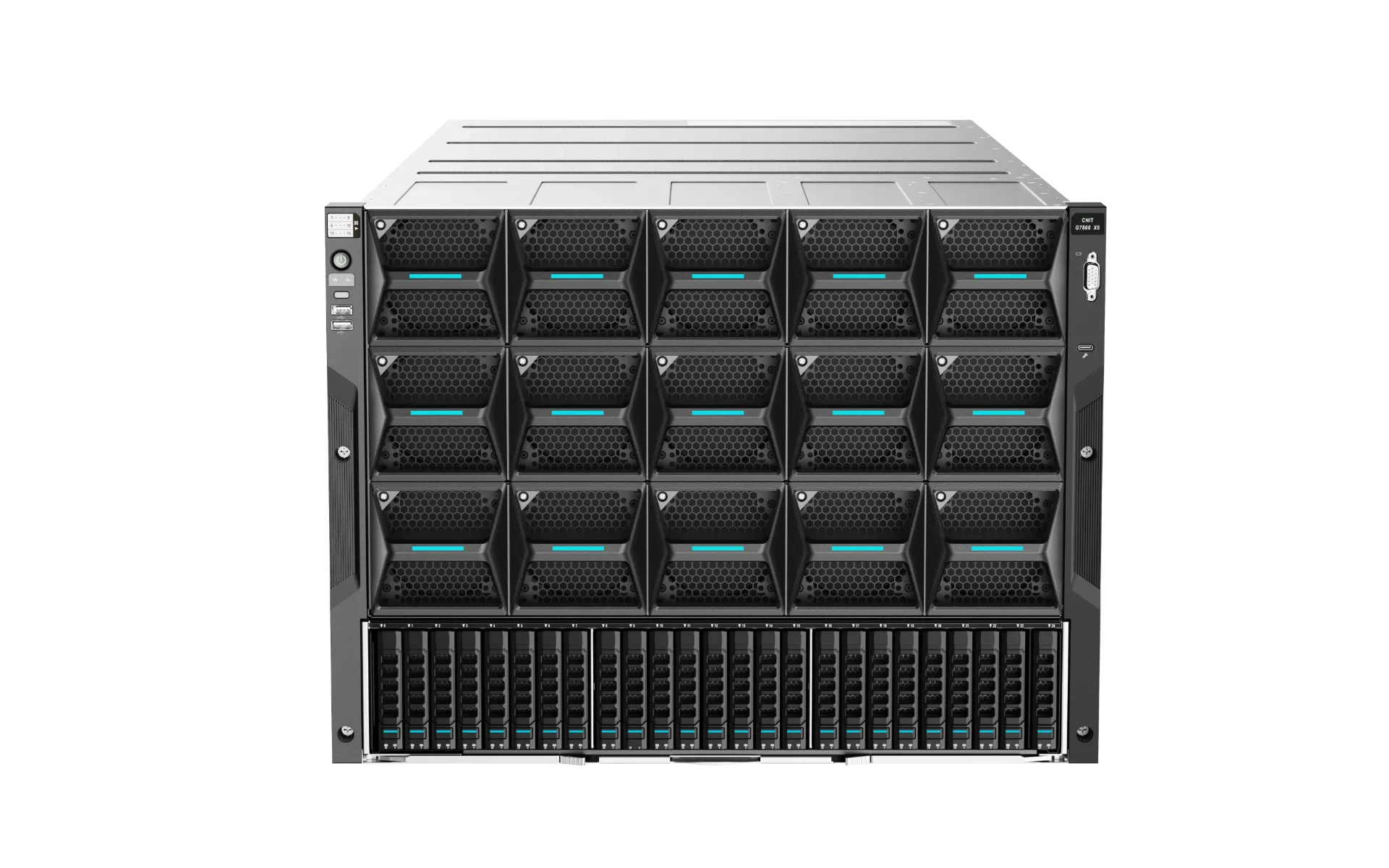

G7868Q X6 server

The G7868Q X6 server supports the new 8-GPU module (SXM5 and OAM2.0). Modularization design comprehensively improves maintainability. The GPU module and CPU adopt cold plate liquid cooling design, achieving energy efficiency and high-density deployment. The main control unit supports up to 2 CPUs, combined with 8-channel 5600MT/s DDR5 Memory technology, providing users with up to 50% bandwidth improvement. With support for 15 PCIe 5.0 slots and up to 27 hard drive slots, it meets the requirements of various computing power architecture solutions and further enhances system computing performance. It can be applied to various large computing power scenarios such as large-scale training, high-performance computing (HPC), and large data centers.

1.00 лв 1.00 лв (Tax excluded)

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Integrated & Open Ecosystem

Open ecosystem design based on OCSP specifications, Server management based on OpenBMC for seamless multi-vendor
integration.

Flexible & Elastic Configuration

Up to 32 memory slots, 29 hard drive slots, and 12PCle slots to meet the most demanding expansion requirements of modern workloads.

Modular Maintenance

Quick assembly and disassembly with hot-swappable core components for easy and efficientmaintenance without total system downtime.

Technical Specifications

Standardized parameters for infrastructure planning and deployment.




  • Function Highlights"1. Compatible with multiple computing power modules, unleashing super-strong computing performance
    The 8-GPU module is compatible with SXM5 and OAM2.0 modules, comprehensively meeting the requirements of high-computing-power scenarios;
    2. Flexible topology design, adaptable to the needs of different application scenarios
    Flexible switching of GPU topology meets the needs of various computing power scenarios; PCIe card modules can adjust resource allocation according to business requirements, facilitating the full release of computing power performance;
    3. Modularization design, comprehensively improving maintainability
    Modularization system design, where the main control unit, computing unit, cooling unit, and PCIe card unit all support individual maintenance, enabling easy operation and maintenance; supports liquid cooling modules to meet multi-scenario cooling requirements;"
    Application Scenarios"1. Large Module Application
    Module Training
    Learning Inference
    2. High-Performance Computing
    Data Analysis
    Scientific Research
    3. Data Processing
    Speech Recognition
    Image Processing
    4. Data center
    Virtualization
    private cloud"
    External Dimensions (H×W×D)
    		352mm (height) × 447mm (width) × 882mm (depth)
    Form Factor8U Standard Chassis
    GPU Module8GPU Module (compatible with and supporting SXM Modules and general OAM2.0 Modules)






  • ProcessorMax 2 CPUs, 64 cores per CPU, maximum power 385W
    MemorySupports up to 32 DDR5 Memory slots, with a speed of up to 5600MT/s, supports RDIMM, and has a capacity of up to 8TB;
    Supports CXL 1.1 and HBM technology
    Storage ControllerIntegrated 6Gb/s SATA controller; optionally supports 12Gb/s SAS HBA and 12Gb/s SAS RAID controller
    Hard Disk ExpansionSystem SAS/SATA/NVMe Hard Drive Configuration:
    Supports up to 27 2.5-inch hard drives, including up to 10 NVMe hard drives, and supports 2 2280/22110 SATA or 1 2280/22110 NVMe M.2 SSDs
    PCIe ExpansionSupports up to 15 PCIe 5.0 expansion slots
    Supports up to 14 x16 PCIe 5.0 standard slots (6 from CPU, 8 from Switch)
    Supports up to 6 x16 PCIe 5.0 FH standard slots
    Supports 1 OCP3.0 onboard slot
    management softwareIntegrated BMC management chip AST2600, supporting functions such as IPMI 2.0, Redfish, SOL, KVM, and virtual media.
    networkSupports 1 OCP3.0 network card, and optionally equipped with 1/10/25/50/100/200/400GE PCIe standard network cards.
    securitySupports intrusion detection for the chassis; supports Intel PFR3.0 and SGX2.0 security technologies; supports TCM/TPM security modules
    fanSupports 10 sets of high-performance fans (1 set with 2 fans each), with N+1 hot-swappable redundancy.
    power supplySupport 6 3500W 54V platinum power supplies (will support 4200W/5200W in the future), and can optionally expand with 2 2000W/2400W/2700W/3200W 12V platinum power supplies. Optional titanium power supply is also available. Supports N+N redundancy/N+1 redundancy.
    operating temperature0℃ to 35℃ (The working temperature is subject to different configurations and may vary.)


Architectural Scalability

Designed for the future of enterprise infrastructure, the G7868Q X6 offers unprecedented efficiency and room forgrowth. The platform architecture minimizes energy wastewhile maximizing throughput.

96% Power Supply Efficiency (80 Plus Titanium)

Flexible LOM and OCP 3.0 network options

Tool-less chassis design for rapid scalability


Architectural Applications

Versatile solutions for diverse computing environments


Data Center Virtualization

High-density cloud computing environments requiring robust CPU andmemory performance.


High Performance Computing

Supporting data analysis, scientific research, and complex simulations with

massive throughput.


Constrained Space Virtualization

Optimized for private cloud deployment in environments where physicalfootprint is limited.


Low Latency Financial

Transaction systems and high-frequency trading platforms requiring
instantaneous processing.
