Integrated & Open Ecosystem
integration.
Flexible & Elastic Configuration
Up to 32 memory slots, 29 hard drive slots, and 12PCle slots to meet the most demanding expansion requirements of modern workloads.
Modular Maintenance
Technical Specifications
Standardized parameters for infrastructure planning and deployment.

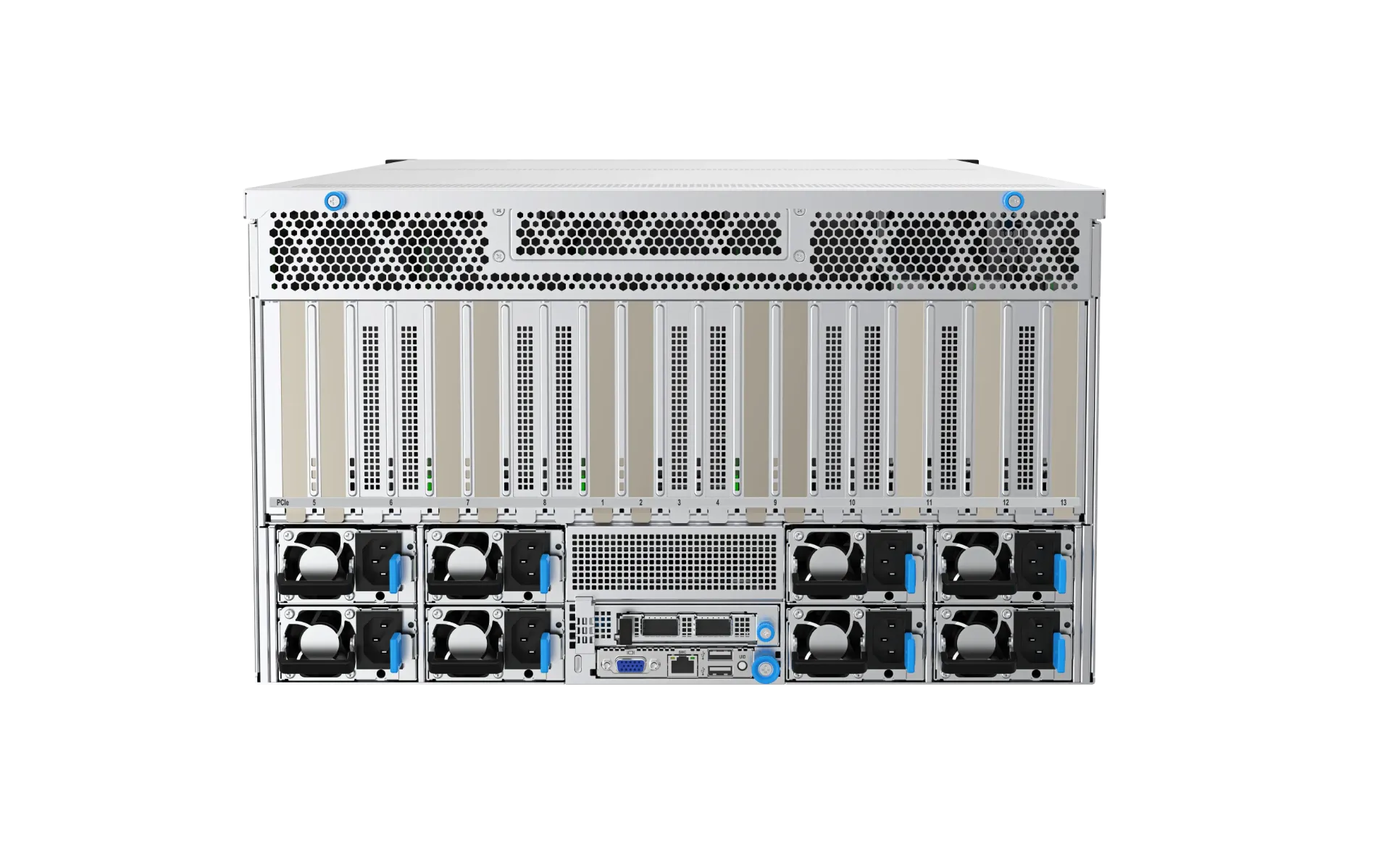

Product Overview The all-new G7666 X6 server is based on the maximum support for 2 Intel® Xeon® fourth or fifth generation scalable processors, combined with 8-channel 5600MT/s DDR5 Memory technology, providing users with up to 50% bandwidth improvement. With support for 11 standard PCIe5.0 slots and up to 12 hard drive slots, it achieves flexible expansion capabilities. With a 96% power efficiency and a standard operating temperature range of 0℃ to 35℃, it offers users a higher energy efficiency return. Function Highlights 1. Multi-Computing Power Engine, Focusing on the Future of Intelligence and Data
Diverse computing power, compatible with various AI acceleration cards
Combining training and inference capabilities, meeting the computing power requirements of different AI loads.
2. Flexible Topology, Adapting to Different Application Scenario Needs
5 types of GPU topological architectures, suitable for different application scenarios
Intelligent resource allocation, driving computing power to operate efficiently.
3. Superb GPU Support, Meeting Computing Power Requirements
Support for the new generation of high-performance GPUs
Support for 8 dual-width cards, 8 triple-width cards or 8 quadruple-width cards. The power consumption of a single card can reach up to 600W, meeting the computing power requirements.Application Scenarios 1. Artificial Intelligence
Intelligent Security
Intelligent Driving
2. High-performance Computing Data analysis
Scientific research
3. Confined space
Virtualization
Private cloud
4. Deep learning
Model training
Learning inferenceExternal Dimensions (H×W×D) 263.7mm (height) × 447mm (width) × 926.9mm (depth) Form Factor 6U standard chassis GPU Module 8-card - Straight-through module
Processor Supports up to 2 Intel® Xeon® 4th or 5th generation Scalable Processors or Leagile Zynq® processor series. Each processor can have up to 64 cores, with a maximum power of 350W and HBM technology support. Memory Supports up to 32 DDR5 Memory slots, with a speed of up to 5600 MT/s, supports RDIMM, and has a capacity of up to 8TB;
Supports CXL 1.1*Storage Controller Integrated with a 6Gb/s SATA controller; optionally supports 12Gb/s SAS HBA and 12Gb/s SAS RAID controller Hard Disk Expansion Supports up to 12 3.5-inch hard drives
Optional 2 2280/22110 SATA/NVMe M.2 SSDsPCIe Expansion Up to 11 standard PCIe expansion slots are supported.
Up to 10 x16 standard PCIe expansion slots are supported.
Supports 1 OCP3.0 slot.management software Integrated BMC management chip AST2600, supporting functions such as IPMI2.0, Redfish, SOL, KVM, and virtual media. network Supports 1 OCP3.0 network card. Optional 1/10/25/50/100/200/400GE PCIe standard network cards can be configured. security Supports intrusion detection for the chassis; supports Intel PFR3.0 and SGX2.0 security technologies; supports TCM/TPM security modules fan Supports 2 fan boards. The lower fan board can support 4 8056 fans, with N+1 hot-swappable redundancy. The middle fan board can support 10 8056 fans, also with N+1 hot-swappable redundancy. power supply Supports 8 platinum power supplies of 2000W/2400W/2700W/3200W. Optional titanium power supply is available. Supports N+N redundancy / N+1 hot-swappable redundancy. operating temperature 0℃ to 35℃ (The working temperature support is affected by different configurations. For details, please refer to the product technical documentation.)
Architectural Scalability
Designed for the future of enterprise infrastructure, the G7666 X6 offers unprecedented efficiency and room forgrowth. The platform architecture minimizes energy wastewhile maximizing throughput.
96% Power Supply Efficiency (80 Plus Titanium)
Flexible LOM and OCP 3.0 network options
Tool-less chassis design for rapid scalability
Architectural Applications
Versatile solutions for diverse computing environments
Data Center Virtualization
High-density cloud computing environments requiring robust CPU andmemory performance.
High Performance Computing
massive throughput.
Constrained Space Virtualization
Optimized for private cloud deployment in environments where physicalfootprint is limited.
Low Latency Financial
instantaneous processing.
