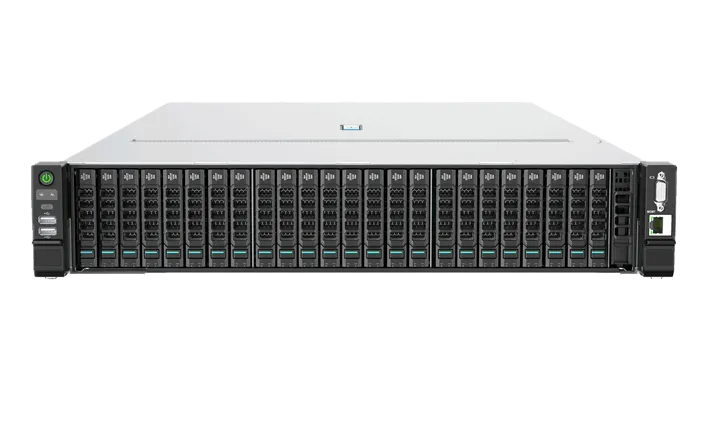

R7260 X5 Server

Model R7260 X5server
Product Overview The R7260 X5 server supports up to 2 CPUs, delivering up to a 52% improvement in processor floating-point performance and a 42% increase in core count. Paired with 8-channel 3200MT/s DDR4 memory technology, it provides up to a 60% increase in memory bandwidth. With support for 12 PCIe slots and up to 35 hard drive slots, the server offers flexible expansion capabilities. It features a power supply efficiency of up to 96% and a standard operating temperature range of 0℃ to 45℃, delivering superior energy efficiency returns for users.
Features Highlights
1. Integrated & Open Ecosystem
Embracing the intelligent data future
Open ecosystem design based on OCSP specifications
Server management powered by Open BMC

2. Flexible & Elastic Configuration
Meeting diverse expansion needs
Up to 32 memory slots
Up to 35 hard drive slots
Up to 12 PCIe slots

3. Modular Installation & Deployment
Easy and efficient maintenance
Modular design for simplified maintenance
Quick assembly & disassembly, hot-swappable core components
Scenarios 1. Data Center
Virtualization
Cloud Computing

2. High Performance Computing
Data Analysis
Scientific Research

3. Constrained Space Environment
Virtualization
Private Cloud

4. Low Latency
Financial Applications
Transaction Systems
Dimensions 87mm (H) × 447.4mm (W) × 800mm (D) (excluding security panel)
Form Factor 2U Standard Chassis
Processor Supports up to 2 CPUs, with a maximum of 40 cores per CPU and a power rating of up to 270W.
Memory Supports up to 32 DDR4 memory slots, with a maximum speed of 3200 MT/s and RDIMM support.
Storage Controller Optional high-performance RAID controller is available, supporting RAID 0/1/10/5/6/50/60.
Storage Expansion 3571 Mpps
2142.7 Mpps
2976 Mpps
1905 Mpps
1488 Mpps
PCIe Expansion Up to 12 PCIe expansion slots:
- Up to 10 standard PCIe slots (rear-mounted), including a maximum of 6 x16 slots
- Up to 2 OCP 3.0 slots
GPU Support Supports up to 4 dual-width GPU cards (maximum power consumption of 450W per card).
Network 1 onboard dedicated Gbps management port
Supports 2 OCP 3.0 network cards
Optional network adapters based on standard PCIe slots
I/O Interface Standard:
- 1 RJ45 management port
- 1 rear VGA port
- 4 USB ports (2 front, 2 rear)

Optional expansion card supports:
- 2 rear USB ports
- 1 USB Type-C management port
- 1 RJ45 management port

Left ear:
- 2 USB 2.0 ports (optional 2 USB 3.0 ports)

Right ear:
- Optional smart ear bracket supports 1 VGA, 1 management port or 1 Type-C management port
Security Supports chassis intrusion detection; supports PFR 3.0 and SGX 2.0 security technologies; supports TCM/TPM security modules.
Power Supply Optional 550W/800W/1300W/1600W/2000W/2600W/2700W/3200W CRPS standard power supplies, supporting 1+1 redundancy.
Operating Temperature 0℃ ~ 45℃
(Operating temperature support varies with different configurations; please refer to the product technical documentation for details.)
