G7868Q X6 server

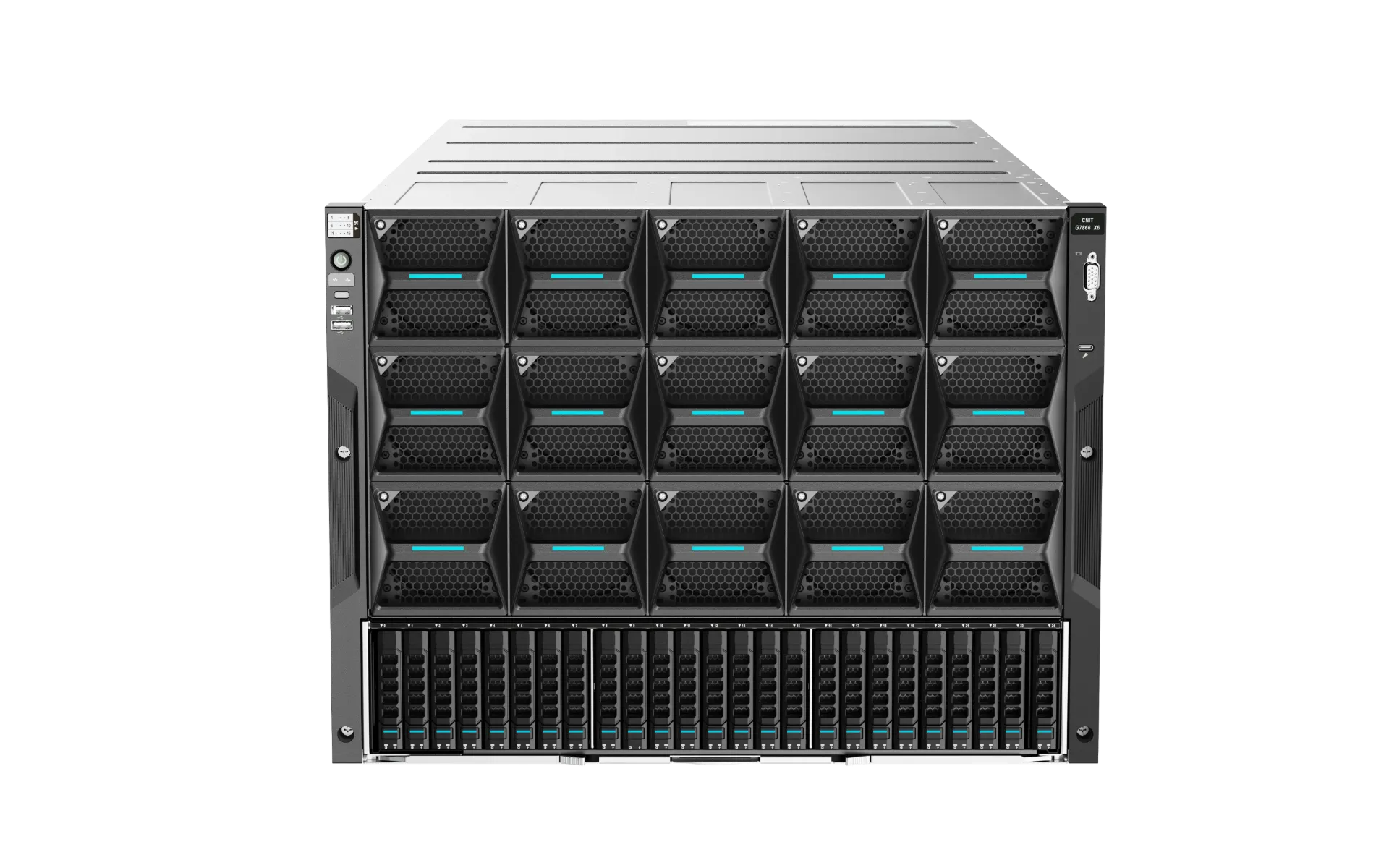

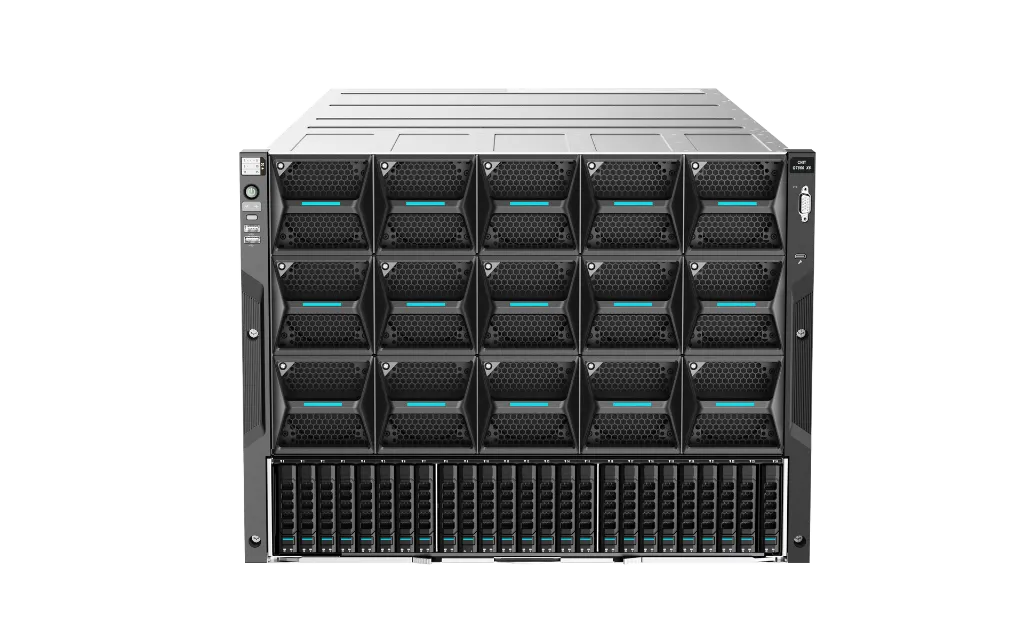

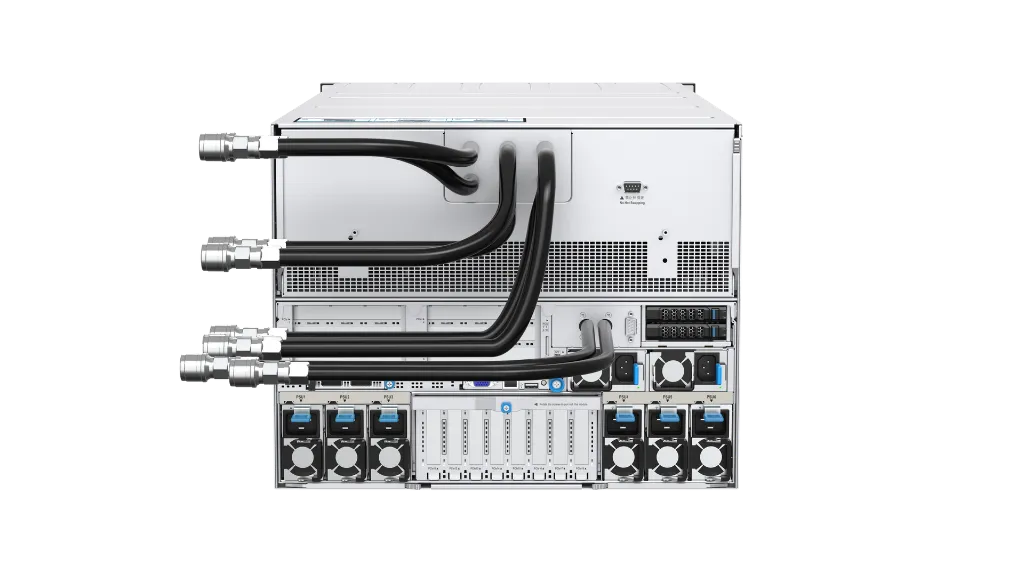

Product Overview The G7868Q X6 server supports the new 8-GPU module (SXM5 and OAM2.0). Modularization design comprehensively improves maintainability. The GPU module and CPU adopt cold plate liquid cooling design, achieving energy efficiency and high-density deployment. The main control unit supports up to 2 CPUs, combined with 8-channel 5600MT/s DDR5 Memory technology, providing users with up to 50% bandwidth improvement. With support for 15 PCIe 5.0 slots and up to 27 hard drive slots, it meets the requirements of various computing power architecture solutions and further enhances system computing performance. It can be applied to various large computing power scenarios such as large-scale training, high-performance computing (HPC), and large data centers.
Function Highlights "1. Compatible with multiple computing power modules, unleashing super-strong computing performance
The 8-GPU module is compatible with SXM5 and OAM2.0 modules, comprehensively meeting the requirements of high-computing-power scenarios;
2. Flexible topology design, adaptable to the needs of different application scenarios
Flexible switching of GPU topology meets the needs of various computing power scenarios; PCIe card modules can adjust resource allocation according to business requirements, facilitating the full release of computing power performance;
3. Modularization design, comprehensively improving maintainability
Modularization system design, where the main control unit, computing unit, cooling unit, and PCIe card unit all support individual maintenance, enabling easy operation and maintenance; supports liquid cooling modules to meet multi-scenario cooling requirements;"
Application Scenarios "1. Large Module Application
Module Training
Learning Inference
2. High-Performance Computing
Data Analysis
Scientific Research
3. Data Processing
Speech Recognition
Image Processing
4. Data center
Virtualization
private cloud"
External Dimensions (H×W×D)
 352mm (height) × 447mm (width) × 882mm (depth)
Form Factor 8U Standard Chassis
GPU Module 8GPU Module (compatible with and supporting SXM Modules and general OAM2.0 Modules)
Processor Max 2 CPUs, 64 cores per CPU, maximum power 385W
Memory Supports up to 32 DDR5 Memory slots, with a speed of up to 5600MT/s, supports RDIMM, and has a capacity of up to 8TB;
Supports CXL 1.1 and HBM technology
Storage Controller Integrated 6Gb/s SATA controller; optionally supports 12Gb/s SAS HBA and 12Gb/s SAS RAID controller
Hard Disk Expansion System SAS/SATA/NVMe Hard Drive Configuration:
Supports up to 27 2.5-inch hard drives, including up to 10 NVMe hard drives, and supports 2 2280/22110 SATA or 1 2280/22110 NVMe M.2 SSDs
PCIe Expansion Supports up to 15 PCIe 5.0 expansion slots
Supports up to 14 x16 PCIe 5.0 standard slots (6 from CPU, 8 from Switch)
Supports up to 6 x16 PCIe 5.0 FH standard slots
Supports 1 OCP3.0 onboard slot
management software Integrated BMC management chip AST2600, supporting functions such as IPMI 2.0, Redfish, SOL, KVM, and virtual media.
network Supports 1 OCP3.0 network card, and optionally equipped with 1/10/25/50/100/200/400GE PCIe standard network cards.
security Supports intrusion detection for the chassis; supports Intel PFR3.0 and SGX2.0 security technologies; supports TCM/TPM security modules
fan Supports 10 sets of high-performance fans (1 set with 2 fans each), with N+1 hot-swappable redundancy.
power supply Support 6 3500W 54V platinum power supplies (will support 4200W/5200W in the future), and can optionally expand with 2 2000W/2400W/2700W/3200W 12V platinum power supplies. Optional titanium power supply is also available. Supports N+N redundancy/N+1 redundancy.
operating temperature 0℃ to 35℃ (The working temperature is subject to different configurations and may vary.)
