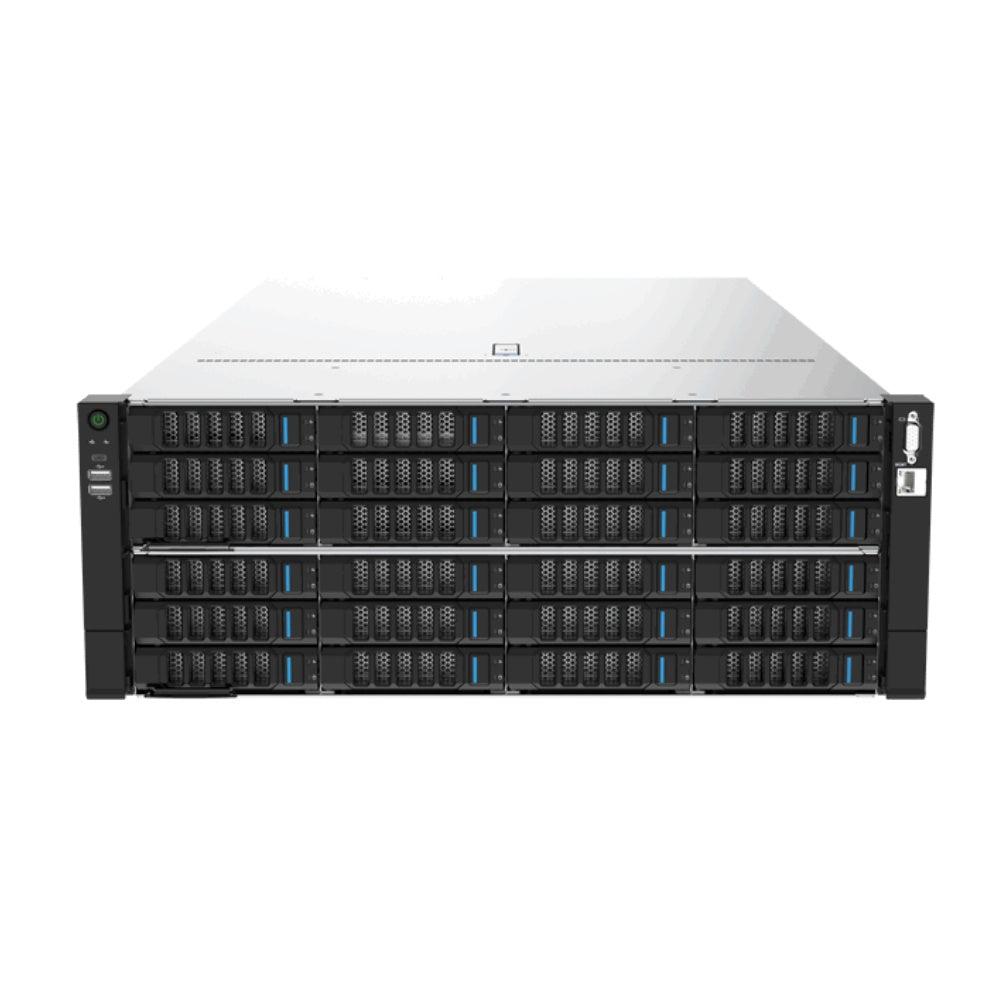

| Form Factor |
4U Rack Server |
| Dimensions (H × W × D) |
175 mm × 447 mm × 898 mm |
| Processor |
Up to 2 CPUs |
| Max CPU Cores |
Up to 40 cores per CPU |
| Max CPU Power |
270W |
| Memory Slots |
Up to 32 DDR4 DIMM slots |
| Memory Speed |
Up to 3200 MT/s |
| Memory Type |
RDIMM |
| Storage Controller |
Optional RAID controller (RAID 0/1/10/5/6/50/60) |
| Storage Bays |
Up to 24 × 3.5" drives |
|
Up to 24 × 2.5" drives |
| Boot Storage |
Optional 2 × 2280 / 22110 SATA or NVMe M.2 SSD |
| GPU Support |
Up to 10 double-width GPUs |
| PCIe Expansion |
Up to 15 PCIe expansion slots |
| OCP Slot |
Up to 1 × OCP 3.0 slot |
| Management |
Integrated AST2600 BMC with IPMI 2.0, Redfish, SOL, KVM, Virtual Media |
| Networking |
1 × OCP 3.0 NIC slot, optional 1/10/25/50/100/200/400GE PCIe NIC |
| Security |
Chassis intrusion detection, PFR 3.0, SGX 2.0, TPM/TCM |
| Cooling |
8 × 8056 hot-swappable fans, N+1 redundancy |
| Power Supply |
Optional 2000W / 2600W / 2700W / 3200W CRPS PSU, N+N or N+1 redundancy |
| Operating Temperature |
0°C – 35°C |
