| product brief introduction |

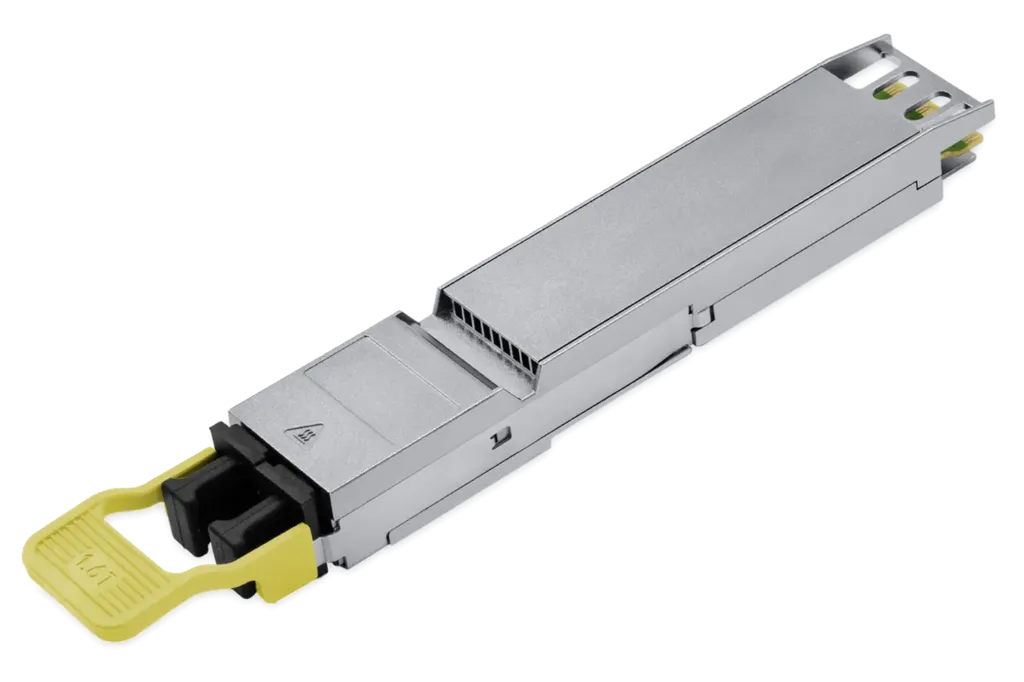

The OSFP optical module is a 1.6T 2x800Gb/s dual-port OSFP, 2xFR4 single-mode, multiplexed, 8-lane optical module, utilizing two 2-fiber LC duplex optical connectors, with each connector carrying 4 lanes of 200G-PAM4. This dual long-reach 8-lane (2xFR4) design is based on the CWDM4 serial, multiplexed 1310nm wavelength grid, employing 200G-PAM4 electrical/optical modulation. It is certified for InfiniBand XDR end-to-end systems. It is an ideal solution for the supercomputing and high-performance computing (HPC) industry, seamlessly integrating into computing and storage infrastructure, ensuring efficient high-performance interconnects. The Flat Top (OSFP-RHS) version is suitable for liquid-cooled switches.
|
| product feature |
Compliant with InfiniBand XDR end-to-end system certification
Built-in Broadcom 5nm DSP chip, maximum power consumption 30W
Up to 1600Gbps total throughput
8x200G-PAM4 electrical interface to dual 4x200G-PAM4 optical parallel
Suitable for High-Performance Computing (HPC) and Machine Learning (ML) architectures
Compliant with OSFP MSA, IEEE802.3dj D1p2, RoHS, and Class 1 laser safety standards, supports DDM
Commercial case temperature range 0°C to 70°C |
