| product brief introduction |

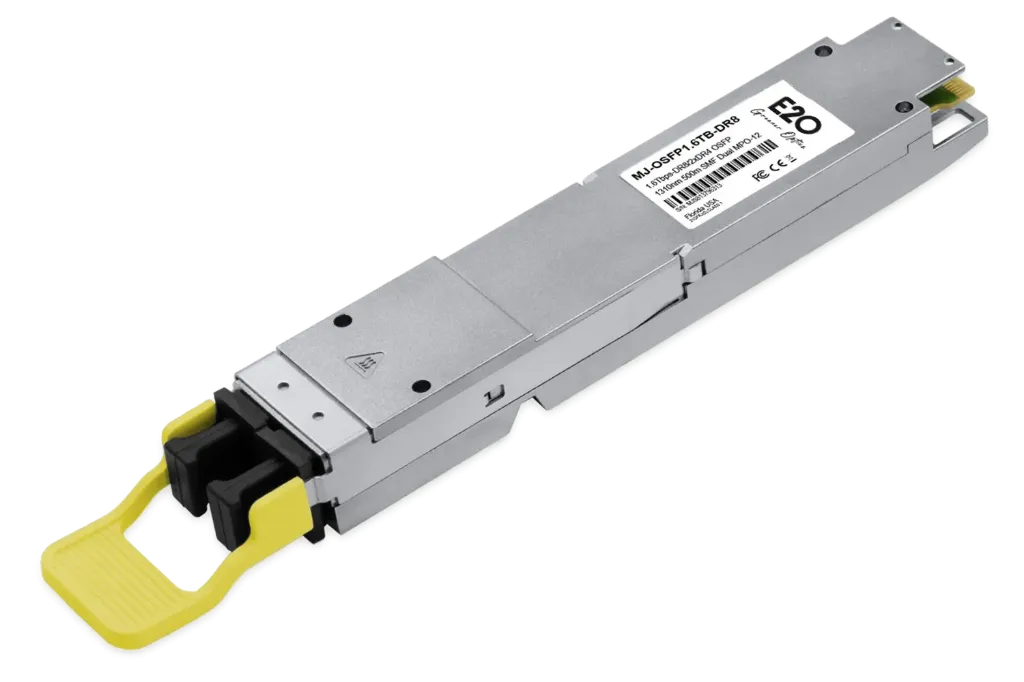

The OSFP optical module is an InfiniBand 1.6T 2x800Gb/s dual-port OSFP, 2xDR4/DR8 single-mode parallel 8-channel optical module, utilizing two 2-fiber 4-channel MPO-12/APC optical connectors, with each port operating at 800Gb/s. This parallel single-mode short-reach 8-channel (2xDR4/DR8) module employs 200G-PAM4 modulation, uses 8 single-mode fibers, and achieves a maximum transmission distance of 500 meters. It has passed InfiniBand XDR end-to-end system certification. This product is an ideal solution for the supercomputing and high-performance computing (HPC) industry, seamlessly integrating into computing and storage infrastructure to ensure efficient high-performance interconnects. The flat top (OSFP-RHS) version is suitable for liquid-cooled switches. |
| product feature |
Certified by InfiniBand XDR end-to-end system
Built-in Broadcom 5nm DSP chip, maximum power consumption 26W
Up to 1600Gbps total throughput
8x200G-PAM4 electrical interface to dual 4x200G-PAM4 optical parallel
Suitable for high-performance computing (HPC) and machine learning (ML) architectures
Compliant with OSFP MSA, IEEE 802.3dj D1p3, RoHS, and Class 1 laser safety standards, supports DDM
Commercial case temperature range: 0°C to 70°C |
