10G SFP-ER-BIDI

10G SFP-ER-BIDI

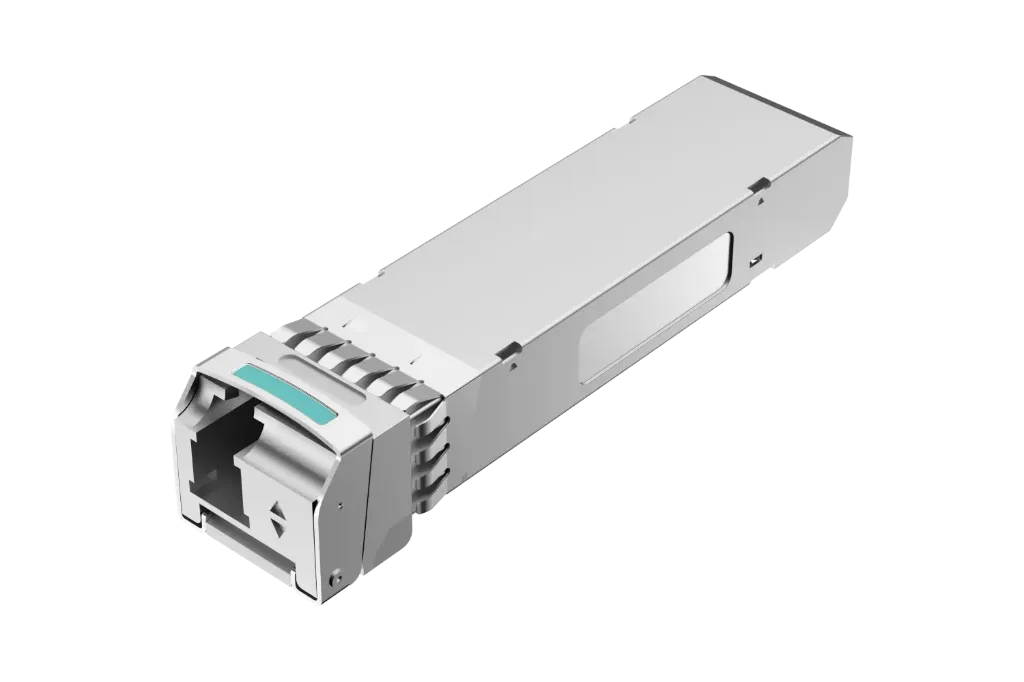

product brief introduction The SFP+ optical module achieves transmission distances of up to 40km over OS2 single-mode fiber via an LC simplex interface. This 10G BiDi SFP+ module supports bidirectional data transmission over a single fiber, with one end transmitting at 1270nm and receiving at 1330nm, while the other end transmits at 1330nm and receives at 1270nm. Digital diagnostics are enabled through the I2C interface specified by SFP-ER-BIDI, facilitating access to real-time operational parameters. Each BiDi SFP+ module is individually tested and can be used in a range of switches, routers, servers, NICs, etc. With low power consumption and high-speed performance, this 10G BiDi SFP+ module is an ideal choice for enterprise wiring closets, service provider transport applications, radio units, and baseband units.
product feature Maximum power consumption: 1W
Industrial case temperature range: -40°C to 85°C
Guaranteed excellent performance, quality, and reliability through testing in target switches
Doubles bandwidth over a single fiber
Bidirectional transmission over a single fiber
Bidirectional information transmission over a single fiber
Compliant with hot-pluggable SFP+ MSA standards
Digital Optical Monitoring (DOM) for robust diagnostic capabilities
Optical interoperability with 10GBASE XFP interfaces on the same link
FDA Laser Safety Class 1 and RoHS compliant
Interoperable with other IEEE-compliant 10G interfaces for seamless integration
Specifications & Models: SFP-10G-ER-A
SFP-10G-LR-A
SFP-10G-ZR-A
SFP-10G-ER-B
SFP-10G-LR-B
SFP-10G-ZR-B
