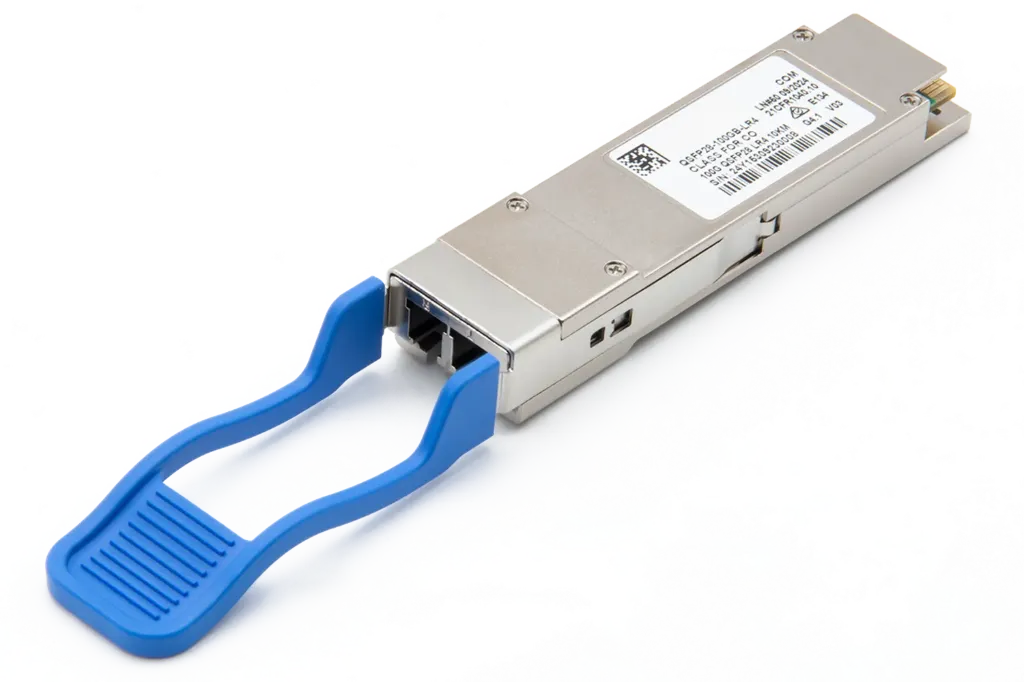

100G QSFP28 LX4

product brief introduction	The 100GBASE-LX4 module supports links up to 2km over single-mode fiber and 100m over OM3 multimode fiber via a duplex LC interface. This transceiver is a fully integrated 4x25.78Gbit/s optical module, incorporating cooled DFB lasers at 1270nm/1290nm/1310nm/1330nm wavelengths, driver IC, PIN photodiode, and CDR (Clock and Data Recovery) IC with a 25Gbit/s electrical interface. Built-in Digital Diagnostic Monitoring (DDM) allows real-time access to operational parameters. Suitable for 100G Ethernet single-mode & multimode and data center interconnect applications.
product feature	Maximum power consumption is 4.5W Tested in live chassis environment to ensure excellent performance, quality, and reliability Commercial case temperature range: 0°C to 70°C Compliant with hot-pluggable QSFP28 standard Up to 100m on OM3 multimode fiber, up to 2km on single-mode fiber 25.78125 Gbit/s x 4 channel electrical interface (CAUI-4) Enables 25G upgrade to 100G without changing existing multimode fiber cabling infrastructure Interoperable with other IEEE-compliant 100G interfaces for seamless integration Compliant with IEEE Std 802.3bm high-speed electrical interface standard
Specifications & Models:	QSFP28-100G-LX4

102.00 лв

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
